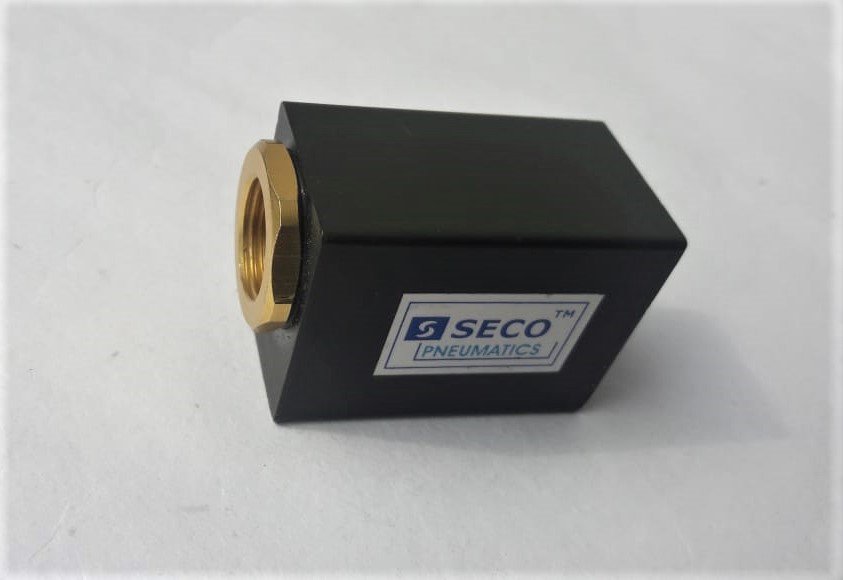

SECO Quick Exhaust Valves

SECO Quick Exhaust Valves are designed to increase the cycle speed of a cylinder in a pneumatic system. These valves can be installed at the blind end or rod end of pneumatic cylinders for rapid retraction or extension according to clients’ actuation requirements. SECO Quick Exhaust Valves provide direct & rapid exhaust of controlled air when placed directly onto an air cylinder.



Description

FEATURES & BENEFITS :

  • SECO Quick Exhaust Valves are specially designed to allow direct exhaust of compressed air from pneumatic circuits.*
  • Increases the speed of cylinders indirectly.
  • Aluminum body with anodization for corrosion resistance & smooth finish.
  • Simple design, easy to install directly onto cylinder ports.
  • Available thread sizes – 1/8″, 1/4″, 3/8″, 1/2″ & 3/4″.



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air

Pressure Range  :-  Vacuum to 10 bar   ( upto  145 PSI )

Ambient Temperature Range  :   0 to +60° C  ( 0  to  +140° F )

Body Material   :-  Aluminum

Plating               :-   Anodized for corrosion resistance & smooth finish

Available Thread Sizes  :  1/8″,  1/4″,  3/8″,  1/2″ & 3/4″
Thread Type     :-  Female BSPP thread. ( NPT & other threads on request )



MODELS & SIZES AVAILABLE  :

 Part No. Conn. Size ( inch ) Thread type
SRE – 01 1/8″ BSPP
SRE – 02 1/4″ BSPP
SRE – 03 3/8″ BSPP
SRE – 04 1/2″ BSPP
SRE – 04 3/4″ BSPP



APPLICATIONS  :

SECO  Quick exhaust valves increases the speed of the cylinder when fitted directly to cylinder ports .  Air is exhausted directly to the atmosphere instead of going through the directional valve.
