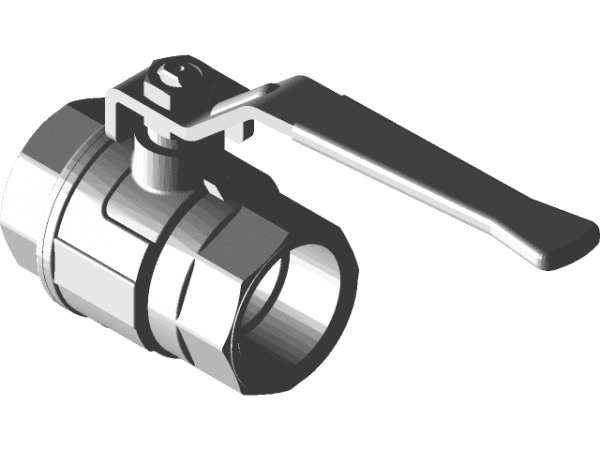

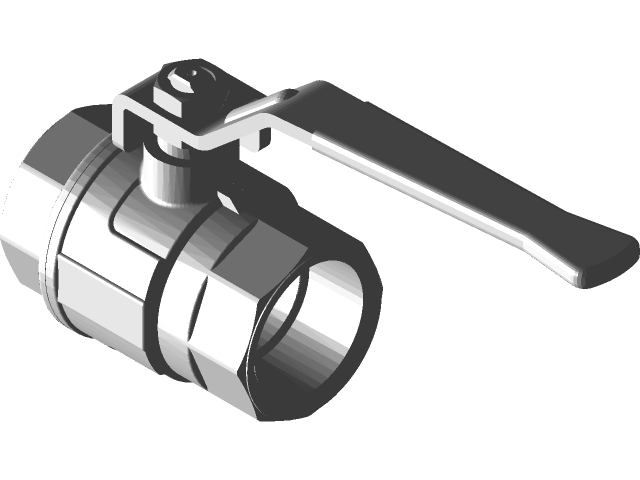

SECO Brass Ball Valve, Nickle Plated, BSPP Thread

DESCRIPTION :

A Ball Valves is basically an ON/OFF, shut off valve that controls the flow of various fluids, liquids & gases. It controls the flow by means of a rotary ball having a bore. When the ball is rotated at 90 degree around its axis, the medium can flow through or is blocked. They are characterized by a long service life and provide a reliable sealing over longer periods. SECO Brass Ball Valves are highly suitable for various applications because they provide excellent durability & perfect sealing even if they are not used for long periods of time.

Description

FEATURES & BENEFITS :

  • SECO Brass Ball Valves are used to Control, ON/OFF the flow of various fluids, liquids & gases.
  • Full bore, Double female, Screwed female threads comply with ISO 228 standard.
  • Two-piece design with forged brass hard chrome plated ball.
  • Excellent chemical & corrosion resistance. Highly durable.
  • Brass body with Nickle plated finish for better aesthetics.
  • PTFE seals for leak-proof performance & Long life.
  • Suitable for use in wide range of applications.
  • Available in various sizes for different pipe size/lines requirements.
  • Available sizes –  1/4″ to 4″ BSP



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air, Water, Oil, Gases etc.

Pressure Range  :-  Vacuum to 16 bar   ( upto  232 PSI )

Ambient Temperature Range  :   0 to +70° C  ( 0  to  +158° F )

Body Material   :-  Brass

Plating               :-   Electroless nickle plating

Available Sizes  :  1/4″,  3/8″,  1/2″,  3/4″,  1″,  1-1/4″,  1-1/2″,  2″,  2-1/2″,  3″ &  4″
Thread Type     :-  Female BSPP thread. ( NPT & other threads on request )



MODELS & SIZES AVAILABLE  :

 Part No. Conn. Size ( inch ) Thread type
SBV – 02 1/4″ BSPP
SBV – 03 3/8″ BSPP
SBV – 04 1/2″ BSPP
SBV – 06 3/4″ BSPP
SBV – 08 1″ BSPP
SBV – 10 1-1/4″ BSPP
SBV – 12 1-1/2″ BSPP
SBV – 14 2″ BSPP
SBV – 16 2-1/2″ BSPP
SBV – 18 3″ BSPP

SBV – 20                           4″                             BSPP



APPLICATIONS  :

SECO Brass Ball Valves can be used in a wide range of applications like oil & gas industries, Chemical & fertilizer industries, Food & beverage industries, Water treatment plants, Compressed air pipelines, Residential & commercial water pipelines, HVAC applications, LP & Natural gas conveyance applications, Plastic processing & water bottling plants, Industrial machinery, Instrumentation etc.
