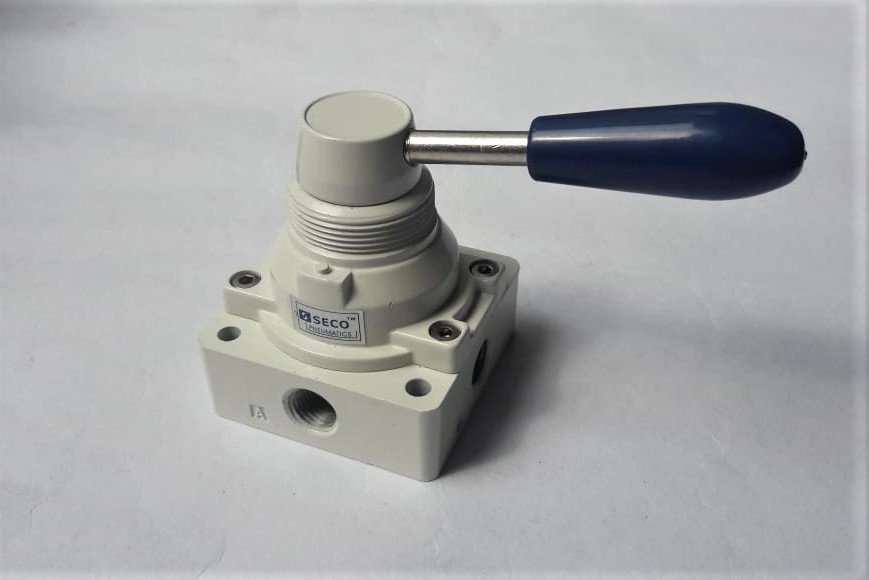

SECO Rotary Hand Valves

2,500.00

DESCRIPTIONS :

Rotary hand valve is a type of valve in which the rotation of a passage or passages in a transverse plug regulates the air flow through the attached pipes. Rotary hand valves are primarily used in pneumatic systems/panels to change the direction of air flow manually. They are used in various pneumatic machines, SPM’s, pneumatic panels etc. for various industrial applications.





Description



FEATURES & BENEFITS :

  • Suitable to be used in pneumatic systems to change the direction of air flow.
  • Suitable for panel mounting as well as direct installations.
  • 4/2 way, 4/3 way disk rotary type with panel nut for panel installations.
  • Compact casting body design for enhanced performance & durability.
  • Available in various sizes for different requirements.
  • Available sizes – 1/8″, 1/4″, 3/8″, 1/2″ & 3/4″



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air

Pressure Range  :-  Vacuum to 10 bar   ( upto  145 PSI )

Ambient Temperature Range  :   0 to +60° C  ( 0  to  +140° F )

Body Material   :-  Aluminum casting body

Coating               :-  Powder coated

Available Sizes  :  1/8″,  1/4″,  3/8″,  1/2″  &  3/4″
Thread Type     :-  Female BSPP thread. ( NPT & other threads on request )
Actuation type   :-  4/2 way  Disk Rotary Type

4/3 way Disk Rotary Type



MODELS & SIZES AVAILABLE  :

 Part No. Conn. Size ( inch ) Thread type
SHRV – 01 1/8″ BSPP
SHRV – 02 1/4″ BSPP
SHRV – 03 3/8″ BSPP
SHRV – 04 1/2″ BSPP
SHRV – 06 3/4″ BSPP



APPLICATIONS  :

Rotary hand valves are commonly used in pneumatic circuits/systems to change the direction of air flow manually. They are used in pneumatic machines, lines & circuits for different applications. They can be panel mounted or directly installed.
