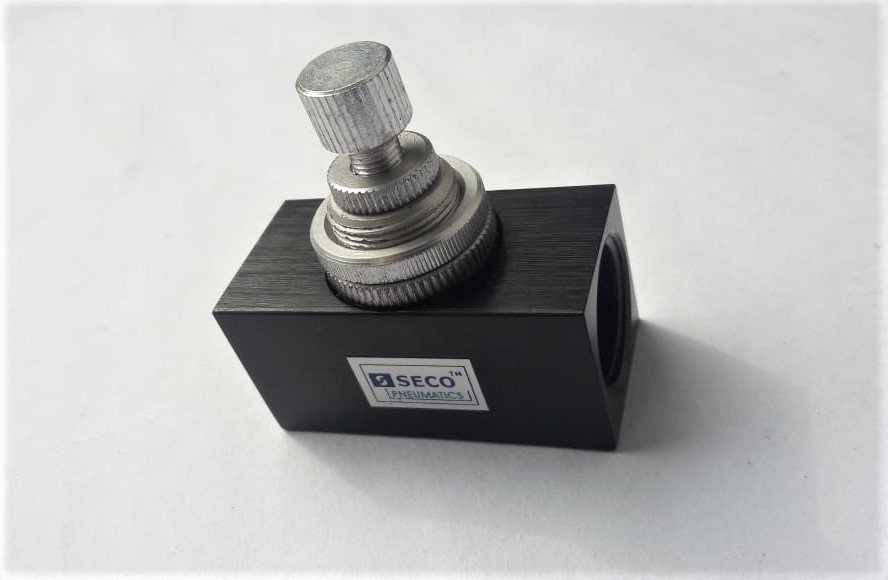

SECO Flow Control Valves

DESCRIPTION :

As the name suggests, Flow control valves are designed for the purpose of controlling air flow in pneumatic systems/circuits. Flow control valves are used to reduce the rate of flow in a section of a pneumatic circuit, resulting in a slower actuator speed. They are primarily used to regulate ( reduce / increase ) air flow in one direction only.

Description



FEATURES & BENEFITS :

Suitable to be used in pneumatic circuits to control/regulate air flow in one direction.
Sturdy inline type compact design for enhanced performance & durability.
Aluminum body with anodization for corrosion resistance & smooth finish.
Available in various sizes for different pipe size/lines requirements.
Available sizes – 1/8″, 1/4″, 3/8″ & 1/2″.



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air

Pressure Range  :-  Vacuum to 10 bar   ( upto  145 PSI )

Ambient Temperature Range  :   0 to +60° C  ( 0  to  +140° F )

Body Material   :-  Aluminum

Plating               :-   Anodized for corrosion resistance & smooth finish

Available Sizes  :  1/8″,  1/4″,  3/8″  &  1/2″
Thread Type     :-  Female BSPP thread. ( NPT & other threads on request )



MODELS & SIZES AVAILABLE  :

 Part No. Conn. Size ( inch ) Thread type
SRE – 01 1/8″ BSPP
SRE – 02 1/4″ BSPP
SRE – 03 3/8″ BSPP
SRE – 04 1/2″ BSPP



APPLICATIONS  :

Flow  control valves are commonly used in pneumatic circuits/systems before actuators to reduce/adjust their speed as per system requirements. They are used in pneumatic machines, lines & circuits which involves directional control valves & actuators/pneumatic cylinders for different applications.
