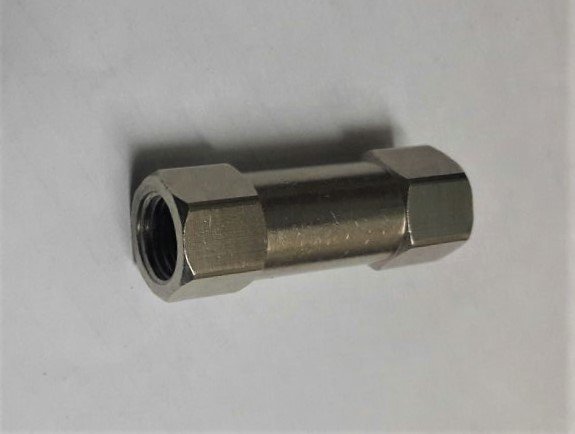

SECO Check Valves

DESCRIPTION :

Check valves are generally used in pneumatic circuits / systems where back flow is not permitted. Check valves are primarily two-port valves that allow free flow in one direction and block flow in the opposite direction.

Description

FEATURES & BENEFITS :

Suitable to be used in pneumatic systems/lines where back flow is not permitted.
Sturdy inline type compact design for enhanced performance & durability.
Brass body with electroless nickle plated for corrosion resistance.
Available in various sizes for different pipe size/lines requirements.
Available sizes – 1/8″, 1/4″, 3/8″ & 1/2″.



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air

Pressure Range  :-  Vacuum to 10 bar   ( upto  145 PSI )

Ambient Temperature Range  :   0 to +70° C  ( 0  to  +158° F )

Body Material   :-  Brass

Plating               :-   Electroless nickle plating

Available Sizes  :  1/8″,  1/4″,  3/8″  &  1/2″
Thread Type     :-  Female BSPP thread. ( NPT & other threads on request )



MODELS & SIZES AVAILABLE  :

 Part No. Conn. Size ( inch ) Thread type
SCV – 01 1/8″ BSPP
SCV – 02 1/4″ BSPP
SCV – 03 3/8″ BSPP
SCV – 04 1/2″ BSPP







APPLICATIONS  :

Pneumatic check valves are commonly used in pneumatic lines, vacuum breakers, steam lines, cooling towers, HVAC system, sump pumps, pressure pumps, boilers etc.
