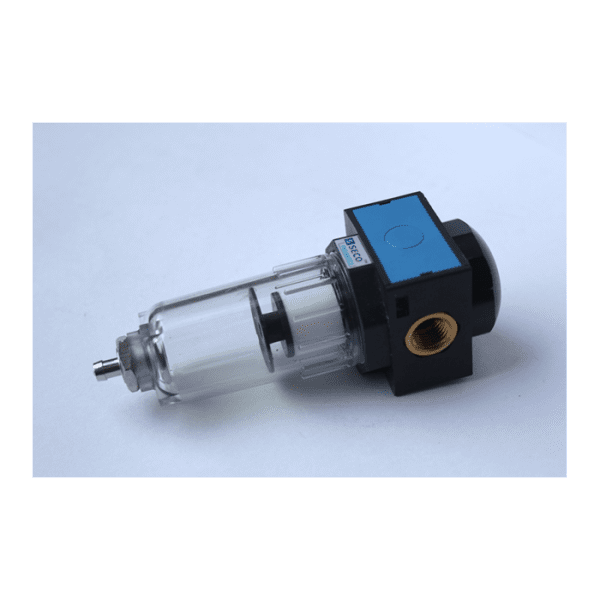

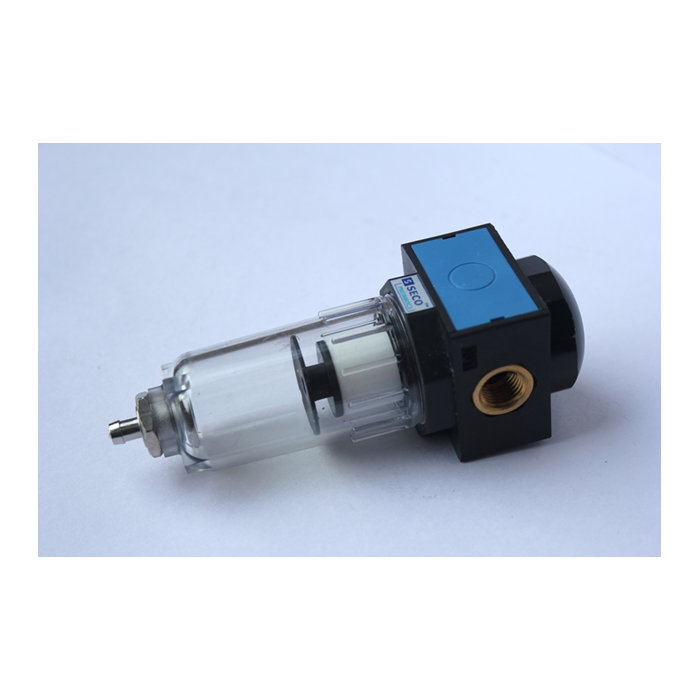

SECO Miniature Filter Unit – 1/4″

SYMBOL

SKU: MF - 02 Categories: , ,
Description

FEATURES & BENEFITS:

* Suitable for in-line or wall mounting installations.
* Removes water and foreign particles effectively from compressed air system.
* Standard 5 Micron filter element ensures maximum water and particle removal.
* High quality poly carbonate bowl is suitable for crucial environments.
* Quick release poly carbonate bowl facilitates easy installation & maintenance.
* Every component is processed through stringent quality standards to produce high quality parts combined with exceptional performance.

TECHNICAL:

Part No. MF – 02
Connection size 1/4″  BSP
Medium Compressed air
Max. Flow (l/min) 1900
Ambient temp. -10 ~ + 60 Degree Celcius
Filtration Standard : 5 Micron, Optional : 40 Micron
Pressure range 0.5 ~ 8.0 kg/cm2                                 (0.05 ~ 0.80 Mpa)
Body material Polycorbonate
Bowl material Polycorbonate
Filter bowl capacity 35 cc
Drainage Semi-automatic drain (Drains below 0.5 kg/cm2)
Weight 245 gms
