FEATURES & BENEFITS :

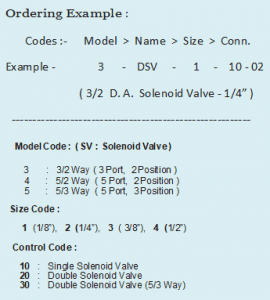

3/2 way Direct Acting Solenoid Valve – 1/4″ ( 3 Port, 2 Position )
High flow-rate capacity, Compact size.
Sturdy aluminium housing body for rust free performance, Long life.
Reduced power consumption. F type solenoid coils with IP65 protection.
Easily interchangeable solenoid coils for different voltage applications.
Standard Electrical LED Coils (High Frequency coils upon request)
Single or manifold mounting option. Manifolds available.
Available in threaded port sizes of G1/8″ & G1/4”
TECHNICAL SPECIFICATIONS :
| Medium | Filtered Compressed Air | |
| No. of Port / Position | 3 Port, 2 Position | |
| Operating Type | Direct Acting Type, Normally Closed | |
| Operating Pressure Range | 0 ~ 8 bar | |
| Max. Pressure Range | 10 bar | |
| Ambient Temp. | -10 ~ +60 degree C | |
| Body Material | Aluminium Alloy | |
| Isolation Grade / Protection | F/ IP 65 (DIN 40050) | |
| Voltage Range | -10% ~ +10% | |
| Standard Voltage | AC 110V, 220V (50/60) Hz | DC 12V, 24V |
