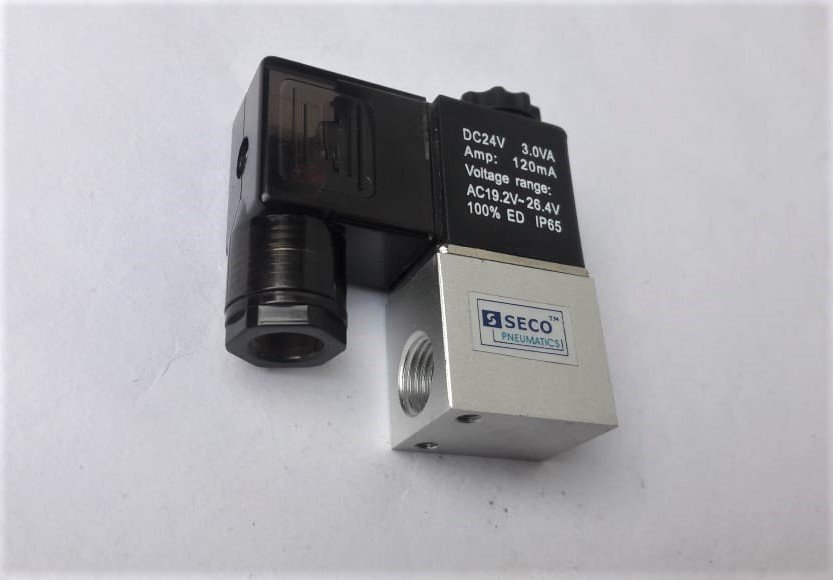

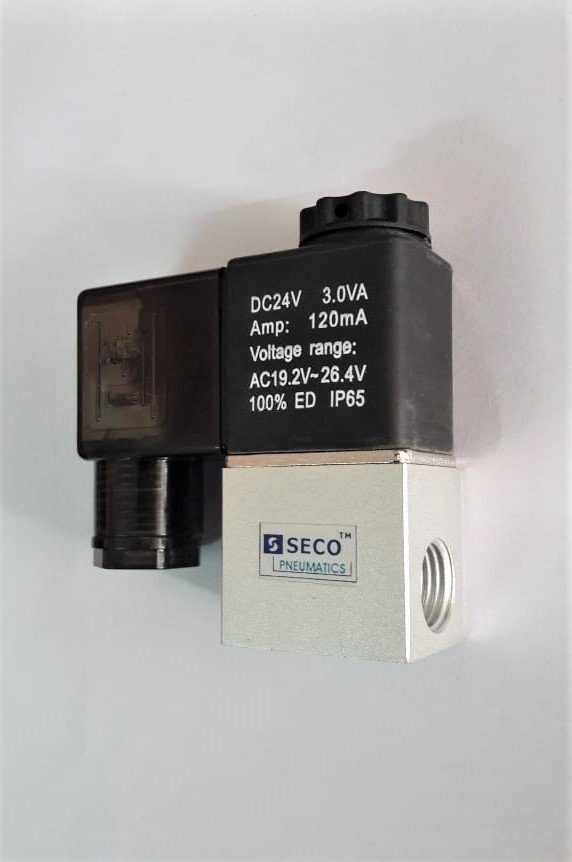

2/2 Direct Acting Solenoid Valve – 1/4″

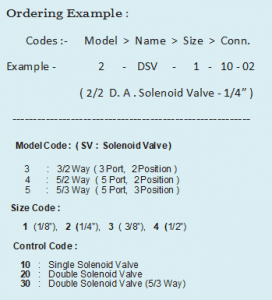

SKU: 2-DSV-1-10 - 02 Categories: ,
Description



FEATURES & BENEFITS :

2/2 way Direct Acting Solenoid Valve – 1/4″
High flow-rate capacity, Compact size.
Sturdy aluminium housing body for rust free performance, Long life.
Reduced power consumption. F type solenoid coils with IP65 protection.
Easily interchangeable solenoid coils for different voltage applications.
Standard Electrical LED Coils (High Frequency coils upon request)
Single or manifold mounting option. Manifolds available.
Available in threaded port sizes of  G1/8″  &  G1/4”



TECHNICAL SPECIFICATIONS :

Medium Filtered Compressed Air
No. of Port / Position 2 Port, 2 Position
Operating Type Direct Acting Type,  Normally Closed
Operating Pressure Range 0 ~ 8 bar
Max. Pressure Range 10 bar
Ambient Temp. -10 ~ +60 degree C
Body Material Aluminium Alloy
Isolation Grade / Protection F/ IP 65 (DIN 40050)
Voltage Range -10% ~ +10%
Standard Voltage     AC 110V, 220V (50/60) Hz     DC 12V, 24V
