Unequal Multiple Tee

Description

FEATURES & BENEFITS :

Full bore design for optimum flow without flow restrictions
Compact & attractive design for space saving & better aesthetics.
S.S. Gripping ring holds the tube perfectly without deformation.
100% leak tested during manufacturing.
Corrosion & chemical resistance. Silicon-free.
Recommended to be used with SECO PU & other tubes for enhanced performance.
Long service life & maintenance free.
Ideal for vacuum or pressure applications.



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air.

( SECO Push-in fittings can also be used with various fluids, cutting oil, water etc. for various industrial applications. Pl. consult us for different fluid applications.)

Pressure Range :-  Upto 20 bar Max ( 290 PSI )

( Maximum working pressure & temperature range are equally dependent on type & diameter of tubing used.)

Temperature Range  :   -20 to +80° C ( -4 to +175° F )

Materials of Construction :

Threaded parts :-  Nickle-plated brass.

Polymer body :-  High quality polyamide material.

Gripping ring :-  Stainless steel

“O” rings :-  Nitrile ( FPM, EPDM “O”-rings upon request )

Pre-Coating  :-  Imported PTFE Coating.Thread

Tube OD Sizes :-  4mm, 6mm, 8mm, 10mm, 14mm & 16mm

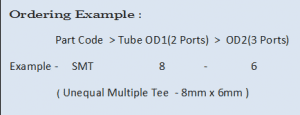

MODELS & SIZES AVAILABLE :

PART NO.     OD1 (2 Ports)

          ( mm )

   OD2 (3 Ports)

         ( mm )

     SMT 6-4           6         4
     SMT 8-6           8          6
     SMT 10-8          10          8
     SMT 12-10          12          10
     SMT 16-12          16          12

Total 5 Ports
