₹2,154.00 ₹1,659.00
SYMBOL

FEATURES & BENEFITS :
* Suitable for in-line or wall mounting installations.
* Easy & accurate pressure setting.
* Press to lock regulating knob for locking at any set pressure.
* Every component is processed through stringent quality standards to produce high quality parts combined with exceptional performance.
TECHNICAL SPECIFICATIONS :

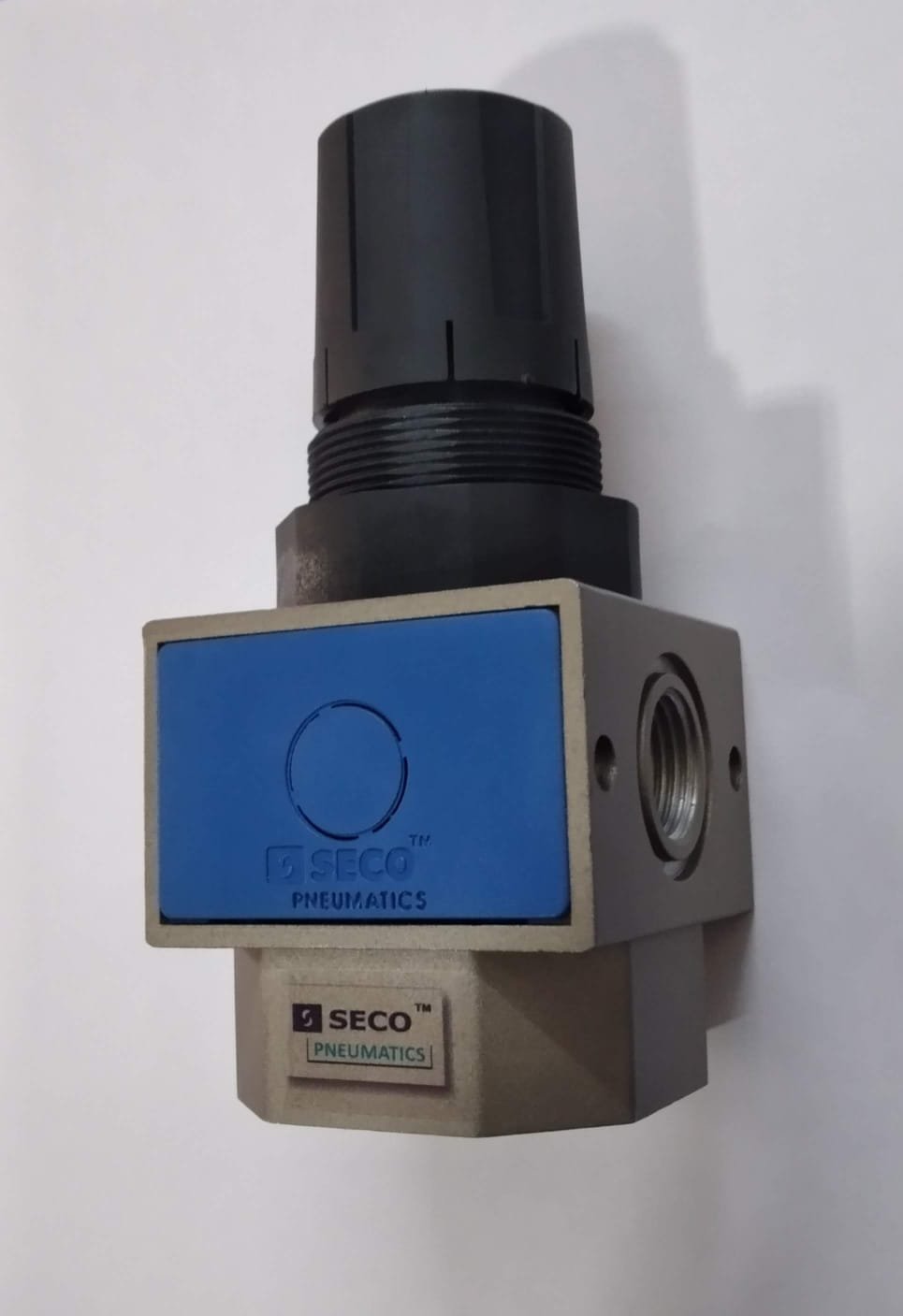

| Part No. | SR – 04 |
| Connection size | 1/2″ BSP |
| Medium | Compressed air |
| Max. Flow (l/min) | 2750 |
| Ambient temp. | -10 ~ + 60 Degree Celcius |
| Regulation Type | Piston |
| Pressure range | 0.5 ~ 9.9 kg/cm2
(0.05 ~ 0.99 Mpa) |
| Body material | Aluminium die – cast |
| Attachments | Pressure Gauge, bracket, 4 screws & plug. |
| Weight | 740 gms |
