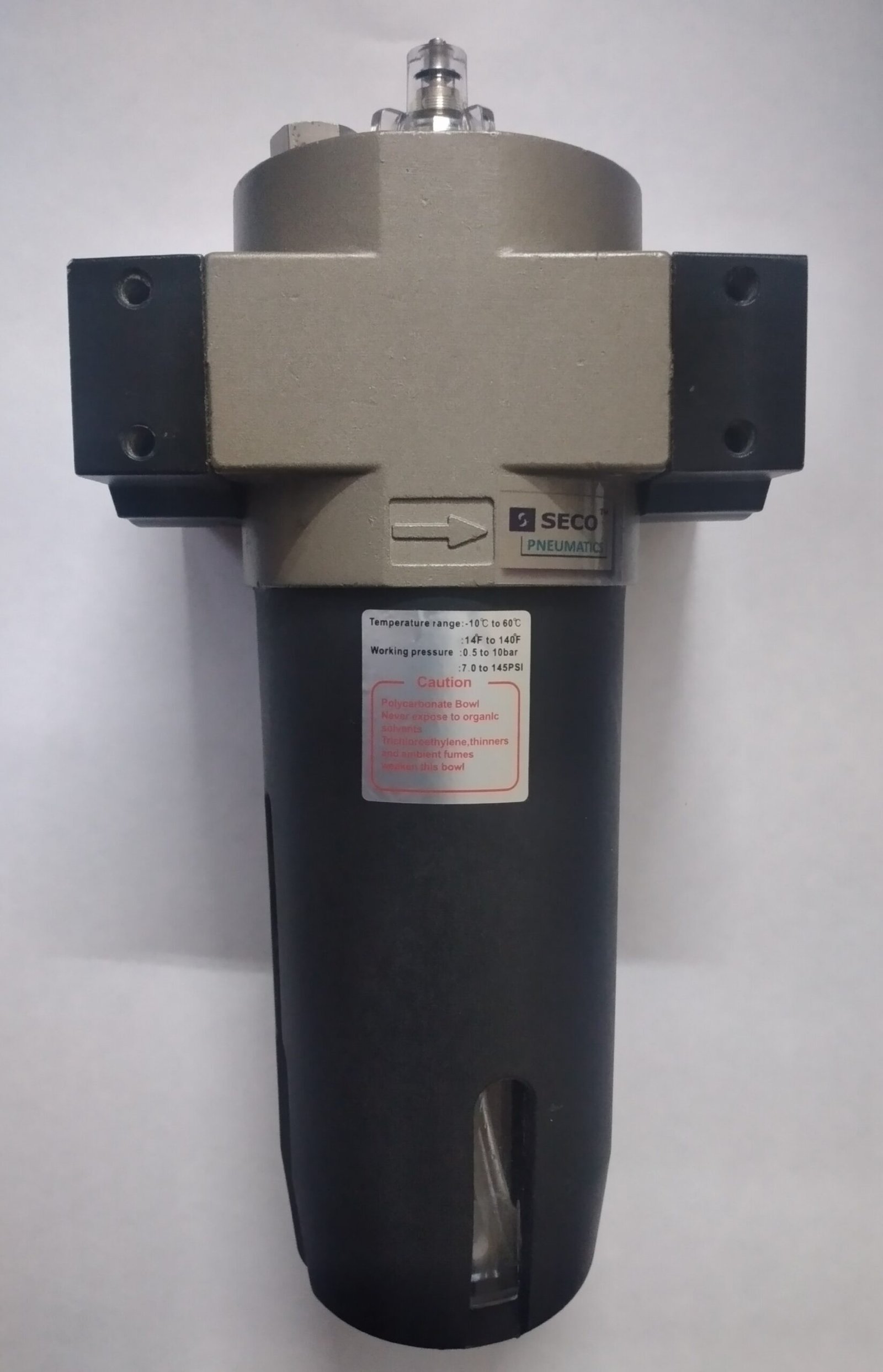

SECO Standard Lubricator Unit – 1″

4,674.00

SYMBOL

SKU: SL - 08 Categories: ,
Description
FEATURES & BENEFITS :

* Suitable for in-line or wall mounting installations.
* Oil spray in mist ensures good lubrication to machines & moving components.
* Quick release polycarbonate bowl facilitates easy installation & maintenance.
* High quality polycarbonate bowl is suitable for crucial environments.
* Easy visibility of lubricator sight feed dome facilitates desired oil flow adjustment.
* Every component is processed through stringent quality standards to produce high quality parts combined with exceptional performance.



TECHNICAL SPECIFICATIONS :
Part No. SL – 08
Connection size 1″  BSP
Medium Compressed air
Max. Flow (l/min) 9000
Ambient temp. -10 ~ + 60 Degree Celcius
Pressure range 0.5 ~ 9.9 kg/cm2

(0.05 ~ 0.99 Mpa)

Body material Aluminium die – cast
Bowl material Polycorbonate
Lubricator bowl capacity 235 cc,
Recommended lubricating oil ISO – VG 32
Weight 1095 gms
