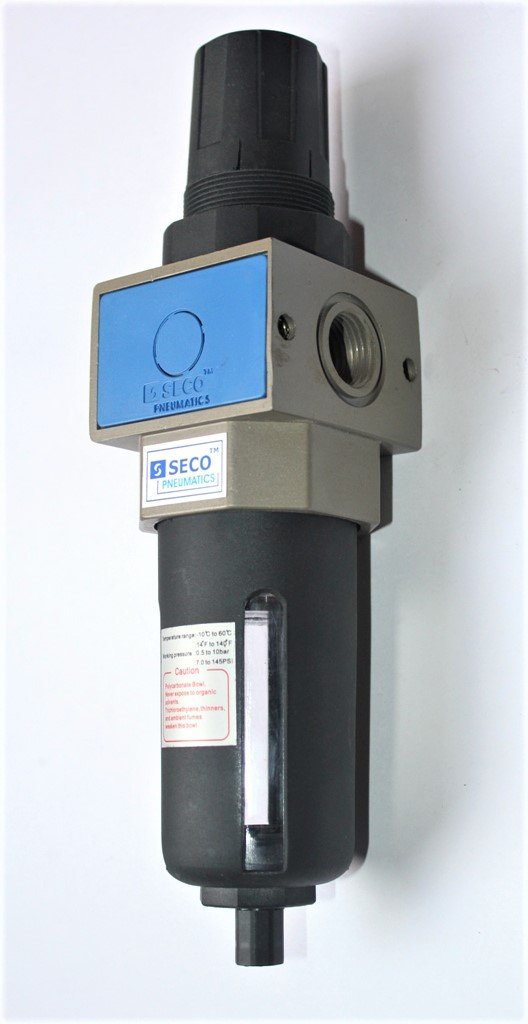

SECO Standard Filter-Regulator Combination Unit – 3/8″

2,940.00

SYMBOL

Description

FEATURES & BENEFITS :

* Suitable for in-line or wall mounting installations.
* Removes water and foreign particles effectively from compressed air system.
* Quick release polycarbonate bowl facilitates easy installation & maintenance.
* High quality polycarbonate bowl is suitable for crucial environments.
* Standard 5 micron filter element ensures maximum water and particle removal.
* Press to lock regulating knob for locking at any set pressure.
* Every component is processed through stringent quality standards to produce high quality parts combined with exceptional performance.



TECHNICAL SPECIFICATIONS :

Part No. SFR – 03
Connection size 3/8″  BSP
Medium Compressed air
Max. Flow (l/min) 2130
Ambient temp. -10 ~ + 60 Degree Celcius
Filtration Standard : 5 Micron, Optional : 40 Micron
Pressure range 0.5 ~ 9.9 kg/cm2

(0.05 ~ 0.99 Mpa)

Body material Aluminium die – cast
Bowl material Polycorbonate
Filter bowl capacity 105 cc,
Drainage Semi-automatic drain (Drains below 0.5 kg/cm2)
Attachments Pressure Gauge, bracket,       4 screws & plug.
Weight 930 gms
