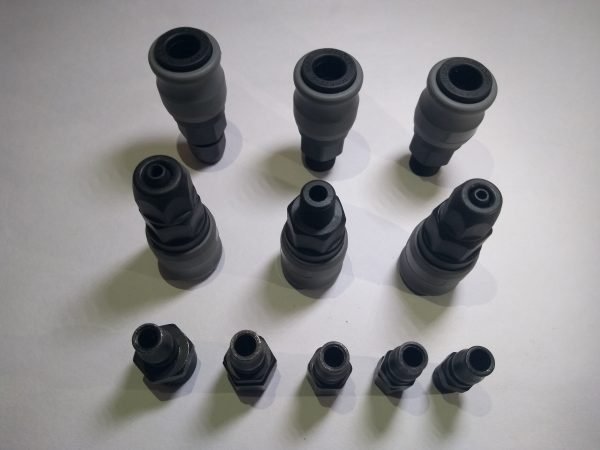

SECO Plastic Couplers

Overview :  Why New SECO Plastics Couplers are BETTER ?

SECO Plastic Couplers are LIGHT WEIGHT, Almost 1/3rd the weight of metal couplers which greatly reduces operator’s fatigue & increases productivity. Plastic Couplers are also RUST FREE  & Corrosion resistant as compared to metal couplers. SECO Plastic Couplers are highly suitable for automobile body shops & various other applications for instant connection & disconnection.



Description

FEATURES & BENEFITS :

  • RUST FREE – Corrosion resistant & Rust free as compared to metal couplers.
  • LIGHT WEIGHT – 1/3rd the weight of metal couplers. Light weight reduces operator’s fatigue & increases productivity.
  • FULL FLOW – Max. air flow valve design for full flow of air.
  • IMPACT RESISTANT – Strong as metal couplers. Very high durability, Polyamide material.
  • INTERCHANGEABILITY – Suitable to be used with other Japanese metal couplers & adaptors.
  • EASY OPERATION – Push to connect & pull to disconnect. Easy & smooth operation.
  • METAL PLUGS – Metal plugs to avoid wear & tear of plug edges to ensure long life.
  • Working temp. range :   -20 ~ 80° C
  • Working pressure range :   0 ~ 20 bar
  • Available Sizes   – 1/4″, 3/8″ & 1/2″



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air & other fluids.

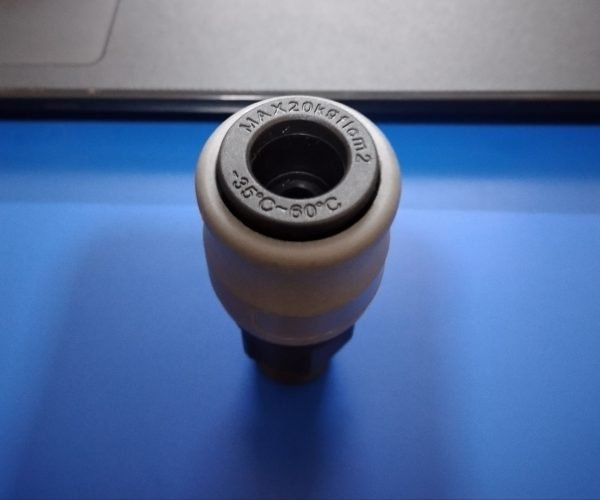

Pressure Range  :-  Vacuum to 20 bar   ( upto  290 PSI )

Ambient Temperature Range  :  -35° C  to +80° C  ( -33° F   to  +176° F )

Body Material   :-  High Quality Polyamide Body Material.

Available Sizes – 1/4″, 3/8″ & 1/2″
SOCKET Codes – PSM = Male Socket, PSF = Female Socket, PSH = Hose Socket, PSN = Nut Socket

PLUG Codes – PPM = Male Plug, PPF = Female Plug, PPH = Hose Plug, PPN = Nut Plug

SIZES & PART CODES

1/4”- 20 PSM 20 PSF 20 PSH 20 PSN 20 PPM 20 PPF 20 PPH 20 PPN
3/8″- 30 PSM 30 PSF 30 PSH 30 PSN 30 PPM 30 PPF 30 PPH 30 PPN
1/2”- 40 PSM 40 PSF 40 PSH 40 PSN 40 PPM 40 PPF 40 PPH 40 PPN



APPLICATIONS  :

SECO Plastic Couplers are Highly suitable for Automobile Plant body shops, parts & component sections to avoid dent / scratch on
car body & other objects during tool use and other operations. New & better alternative of metal couplers for all pneumatic
installations for rust free performance & long service life.
