FEATURES & BENEFITS :
Full bore design for optimum flow without flow restrictions
Compact & attractive design for space saving & better aesthetics.
S.S. Gripping ring holds the tube perfectly without deformation.
100% leak tested during manufacturing.
Corrosion & chemical resistance. Silicon-free.
Available in BSPT bottom & BSPP top threads ( NPT Threads on request )
Recommended to be used with SECO PU & other tubes for enhanced performance.
Long service life & maintenance free.
Ideal for vacuum or pressure applications.
TECHNICAL SPECIFICATIONS :
Compatible Fluids :- Compressed Air.
( SECO Push-in fittings can also be used with various fluids, cutting oil, water etc. for various industrial applications. Pl. consult us for different fluid applications.)
Pressure Range :- Upto 20 bar Max ( 290 PSI )
( Maximum working pressure & temperature range are equally dependent on type & diameter of tubing used.)
|Temperature Range : -20 to +80° C ( -4 to +175° F )|
Materials of Construction :
Threaded parts :- Nickle-plated brass.
Polymer body :- High quality polyamide material.
Gripping ring :- Stainless steel
“O” rings :- Nitrile ( FPM, EPDM “O”-rings upon request )
Pre-Coating :- Imported PTFE Coating.Thread
|Size Codes :- M5, M7, 01 (1/8”), 02 (1/4”), 03 (3/8”), 04 (1/2”) & 06 (3/4”)|
|Tube OD Sizes :- 4mm, 6mm, 8mm, 10mm, 14mm & 16mm|

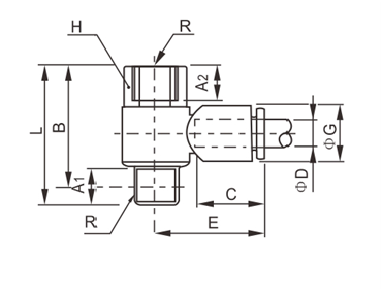

PRODUCT DETAILS :
|PART NO.|| Tube O.D.
( mm )
| Conn. Size
( inch )
