5/2 Single Solenoid Valve – 1/4″

1,795.00 1,255.00

SKU: 4-SV-2-10-24VDC Categories: ,
Description

FEATURES & BENEFITS :

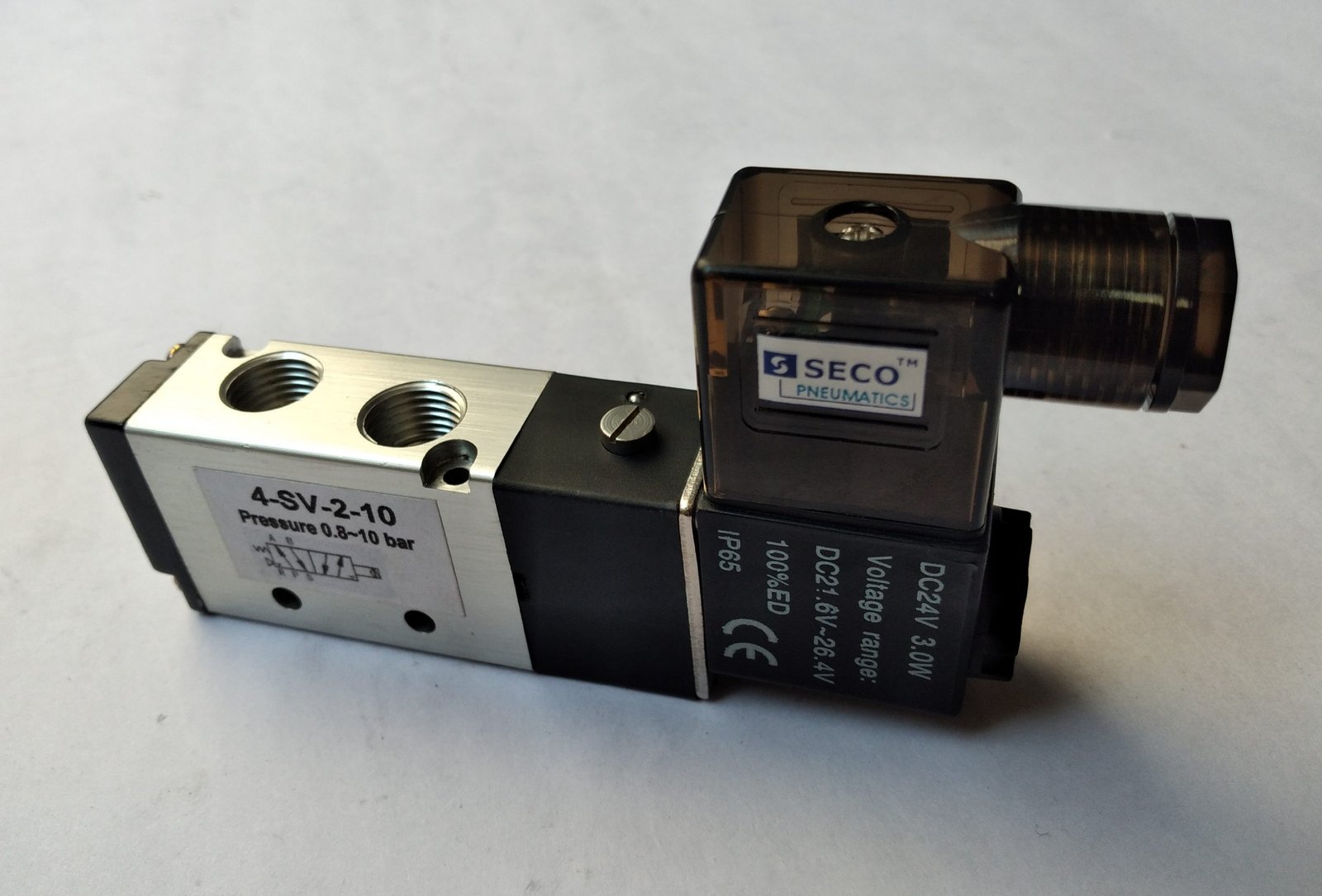

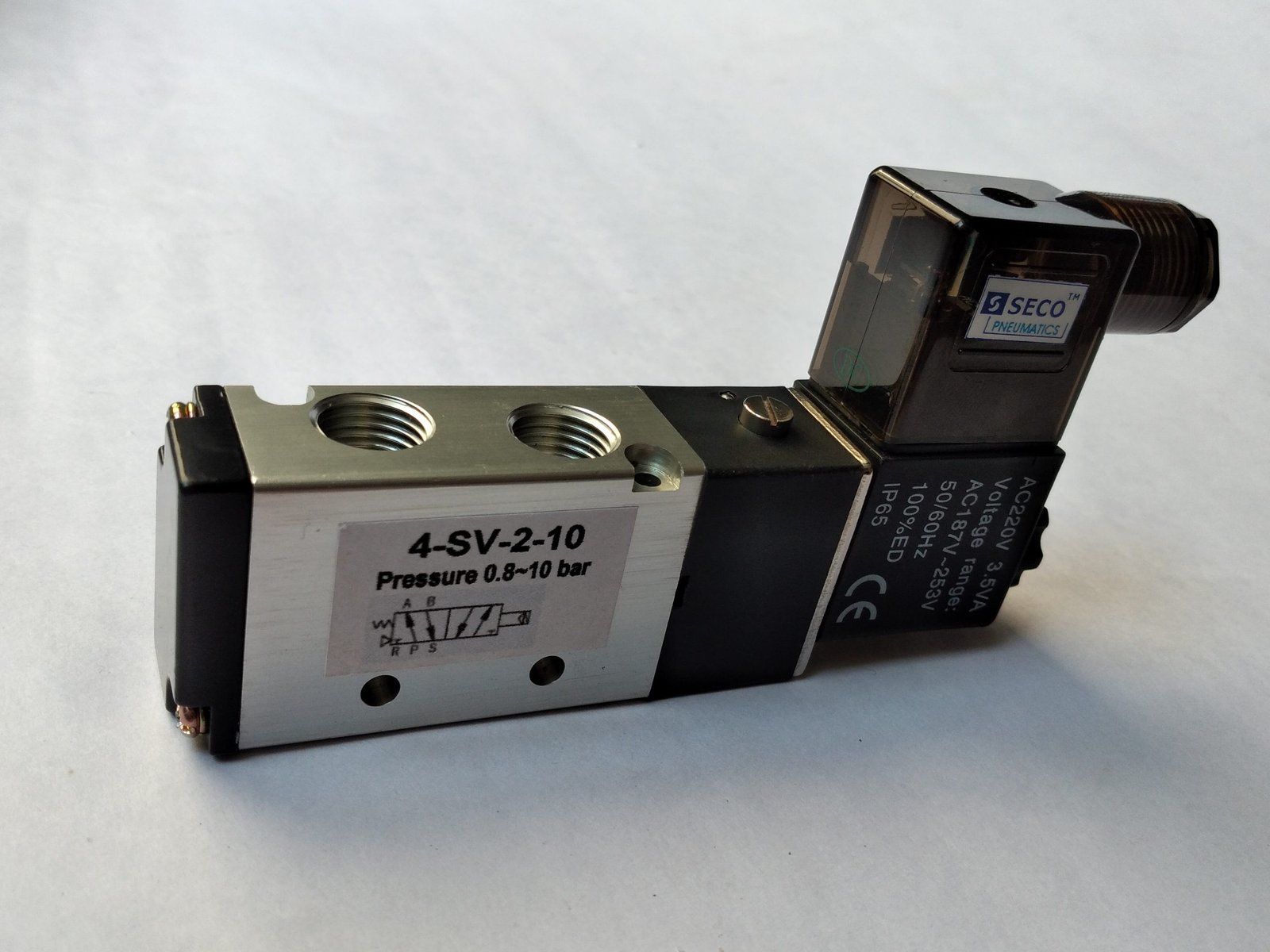

5/2 way Single Solenoid Valve – 1/4″ ( 5 Port, 2 Position ).
High flow-rate capacity, Compact size.
Sturdy aluminium housing body for rust free performance, Long life.
Reduced power consumption. F type solenoid coils with IP65 protection.
Easily interchangeable solenoid coils for different voltage applications.
Standard Electrical LED Coils (High Frequency coils upon request)
High Quality Japanese “O” rings for smooth functioning & long life.
Metal manual override buttons for robust & enhanced performance.
Single or manifold mounting option. Wide range of manifolds available..
Wide range of threaded port size ranges from G1/8″ ~ G1/2”



TECHNICAL SPECIFICATIONS :

Medium Filtered Compressed Air
No. of Port / Position 5 Port, 2 Position
Operating Type Inner Spring Return
Operating Pressure Range 0.8 ~ 10 bar
Max. Pressure Range 12 bar
Ambient Temp. -10 ~ +60 degree C
Body Material Aluminium Alloy
Isolation Grade / Protection F/ IP 65 (DIN 40050)
Voltage Range -10% ~ +10%
Standard Voltage     AC 110V, 220V (50/60) Hz ;     DC 12V, 24V
