FEATURES & BENEFITS :
Full bore design for optimum flow without flow restrictions
Compact & attractive design for space saving & better aesthetics.
S.S. Gripping ring holds the tube perfectly without deformation.
100% leak tested during manufacturing.
Corrosion & chemical resistance. Silicon-free.
Recommended to be used with SECO PU & other tubes for enhanced performance.
Long service life & maintenance free.
Ideal for vacuum or pressure applications.
TECHNICAL SPECIFICATIONS :
| Compatible Fluids :- Compressed Air.
( SECO Push-in fittings can also be used with various fluids, cutting oil, water etc. for various industrial applications. Pl. consult us for different fluid applications.) |
| Pressure Range :- Upto 20 bar Max ( 290 PSI )
( Maximum working pressure & temperature range are equally dependent on type & diameter of tubing used.) |
| Temperature Range : -20 to +80° C ( -4 to +175° F ) |
| Materials of Construction :
Threaded parts :- Nickle-plated brass. Polymer body :- High quality polyamide material. Gripping ring :- Stainless steel “O” rings :- Nitrile ( FPM, EPDM “O”-rings upon request ) Pre-Coating :- Imported PTFE Coating.Thread |
| Tube OD Sizes :- 4mm, 6mm, 8mm, 10mm, 14mm & 16mm |

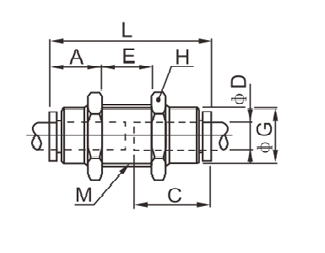

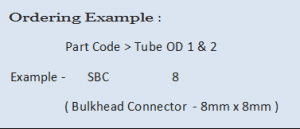

MODELS & SIZES AVAILABLE :
| PART NO. | OD 1
( mm ) |
OD 2
( mm ) |
| SBC 4 | 4 | 4 |
| SBC 6 | 6 | 6 |
| SBC 8 | 8 | 8 |
| SBC 10 | 10 | 10 |
| SBC 12 | 12 | 12 |
| SBC 14 | 14 | 14 |
| SBC 16 | 16 | 16 |
