Sale!

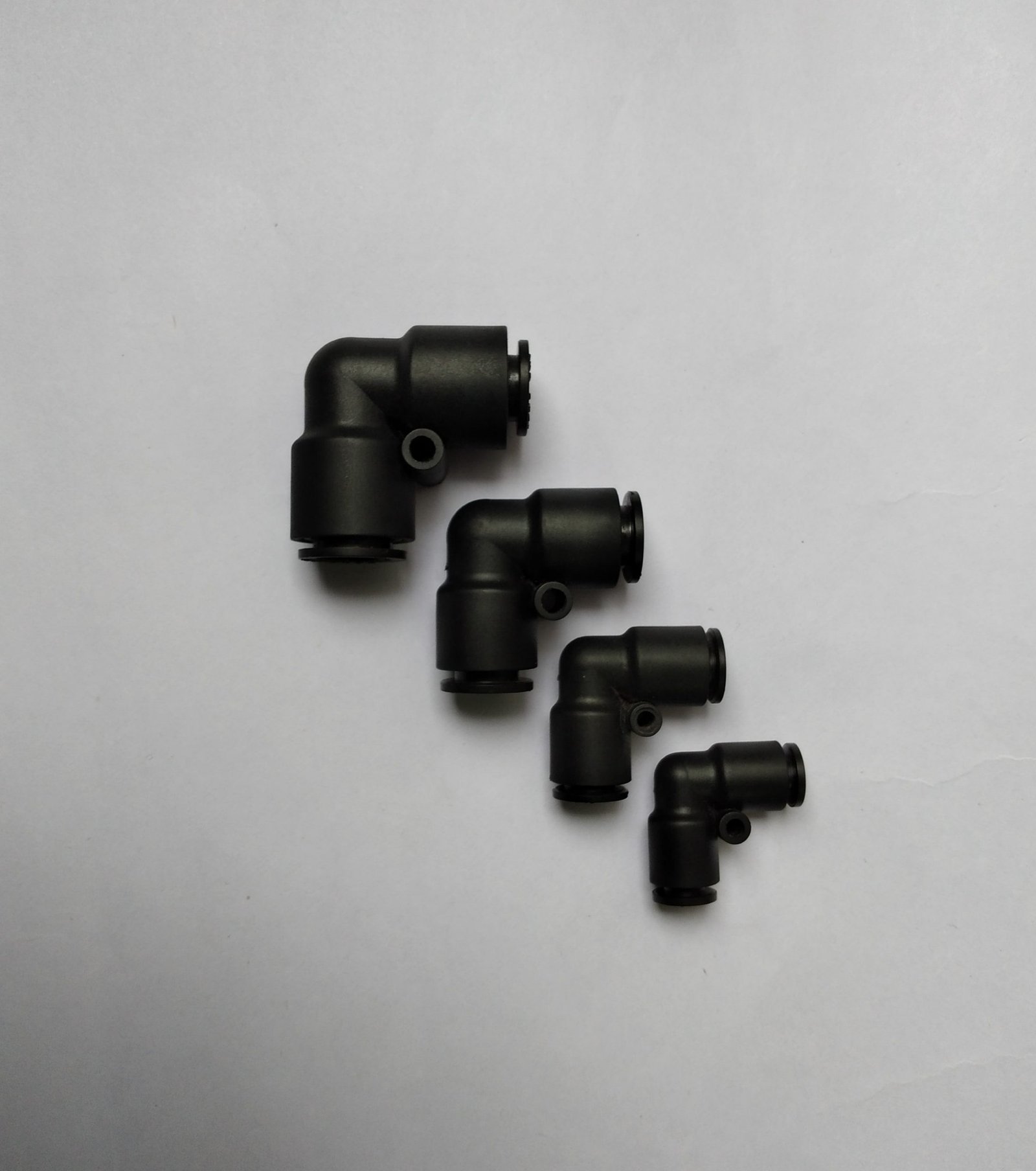

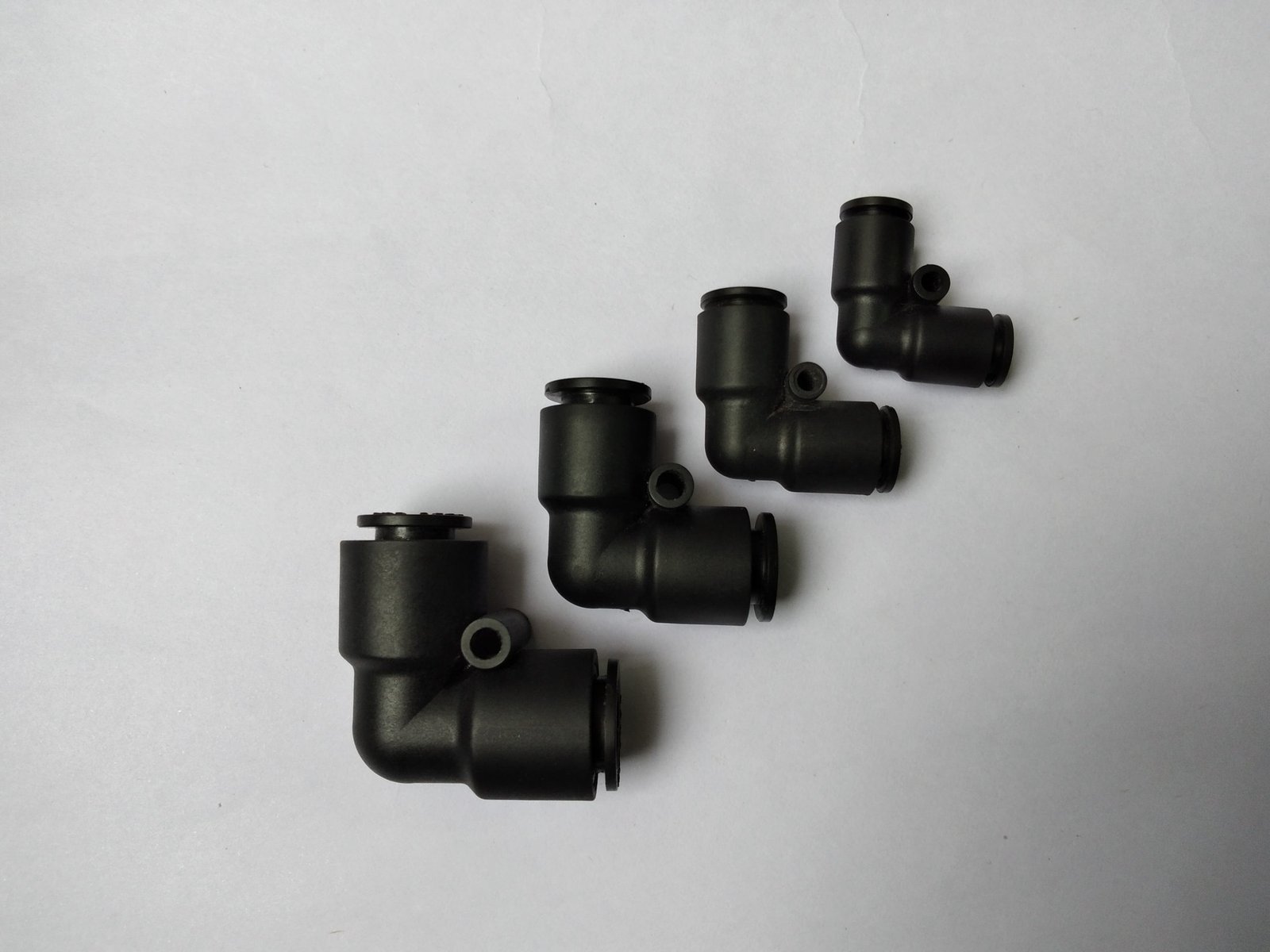

Unequal Elbow

2,000.00

Categories: ,
Description

FEATURES & BENEFITS :

Full bore design for optimum flow without flow restrictions
Compact & attractive design for space saving & better aesthetics.
S.S. Gripping ring holds the tube perfectly without deformation.
100% leak tested during manufacturing.
Corrosion & chemical resistance. Silicon-free.
Recommended to be used with SECO PU & other tubes for enhanced performance.
Long service life & maintenance free.
Ideal for vacuum or pressure applications.



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air.

( SECO Push-in fittings can also be used with various fluids, cutting oil, water etc. for various industrial applications. Pl. consult us for different fluid applications.)

Pressure Range :-  Upto 20 bar Max ( 290 PSI )

( Maximum working pressure & temperature range are equally dependent on type & diameter of tubing used.)

Temperature Range  :   -20 to +80° C ( -4 to +175° F )

Materials of Construction :

Threaded parts :-  Nickle-plated brass.

Polymer body :-  High quality polyamide material.

Gripping ring :-  Stainless steel

“O” rings :-  Nitrile ( FPM, EPDM “O”-rings upon request )

Pre-Coating  :-  Imported PTFE Coating.Thread

Tube OD Sizes :-  4mm, 6mm, 8mm, 10mm, 14mm & 16mm



MODELS & SIZES AVAILABLE :

PART NO.       OD 1

    ( mm )

      OD 2

    ( mm )

        SEE 4-6     4     6
      SEE 6-8      6      8
      SEE 8-10      8     10
     SEE 10-12      10      12
     SEE 12-16      12      16
