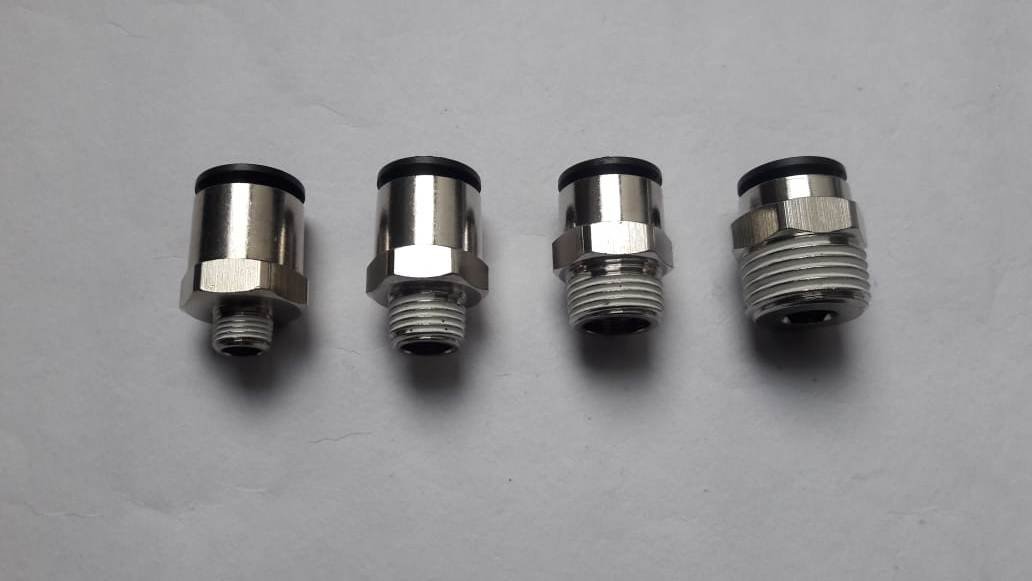

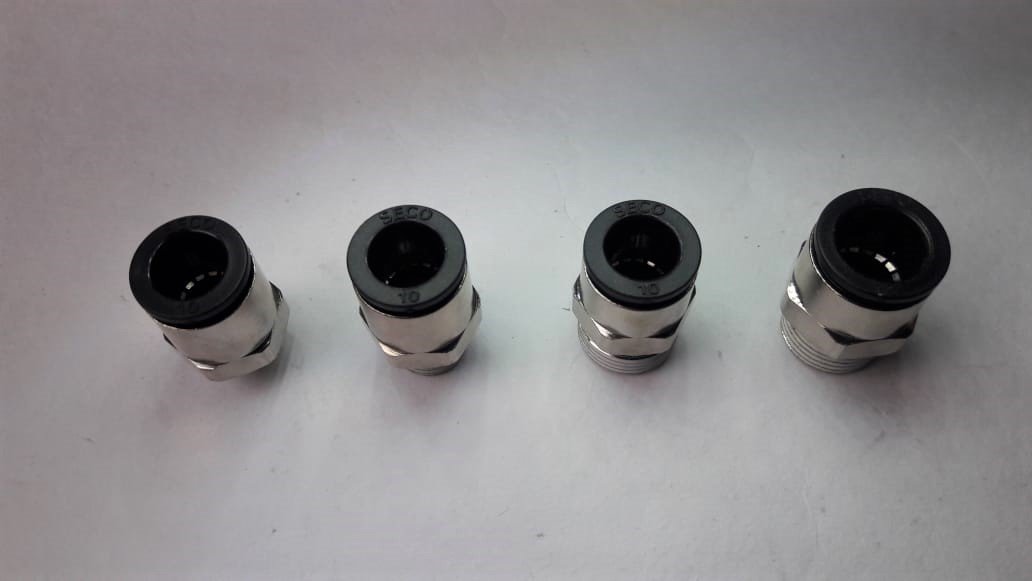

Straight Connector ( Male Connector ), BSPT Thread

400.00850.00

Description

FEATURES & BENEFITS :

Full bore design for optimum flow without flow restrictions
Internal Hex slots in Straight Connectors for Allen key use in tight spaces.
Compact & attractive design for space saving & better aesthetics.
S.S. Gripping ring holds the tube perfectly without deformation.
100% leak tested during manufacturing.
Corrosion & chemical resistance. Silicon-free.
Available in BSPT threads ( BSPP & NPT Threads on request )
Recommended to be used with SECO PU & other tubes for enhanced performance.
Long service life & maintenance free.
Ideal for vacuum or pressure applications.



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air.

( SECO Push-in fittings can also be used with various fluids, cutting oil, water etc. for various industrial applications. Pl. consult us for different fluid applications.)

Pressure Range :-  Upto 20 bar Max ( 290 PSI )

( Maximum working pressure & temperature range are equally dependent on type & diameter of tubing used.)

Temperature Range  :   -20 to +80° C ( -4 to +175° F )

Materials of Construction :

Threaded parts :-  Nickle-plated brass.

Polymer body :-  High quality polyamide material.

Gripping ring :-  Stainless steel

“O” rings :-  Nitrile ( FPM, EPDM “O”-rings upon request )

Pre-Coating  :-  Imported PTFE Coating.Thread

Size Codes :-  M5, M7, 01 (1/8”), 02 (1/4”), 03 (3/8”), 04 (1/2”) & 06 (3/4”)
Tube OD Sizes :-  4mm, 6mm, 8mm, 10mm, 14mm & 16mm

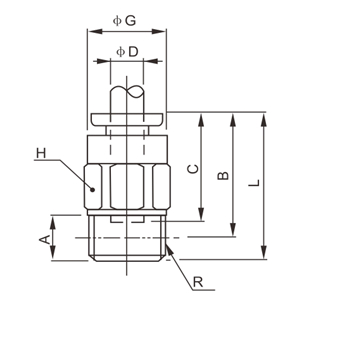

PRODUCT DETAILS  :

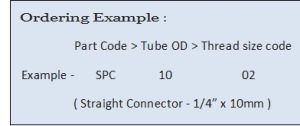

PART NO.   Tube O.D.

    ( mm )

 Conn. Size

   ( inch )

SPC 4-M5     4 M5
SPC 4-01      4 R1/8”
SPC 4-02      4 R1/4”
SPC 4-03      4 R3/8”
SPC 6-M5     6   M5
SPC 6-01      6 R1/8”
SPC 6-02      6 R1/4”
SPC 6-03      6 R3/8”
SPC 6-04      6 R1/2″
SPC 8-01      8 R1/8”
SPC 8-02      8 R1/4”
SPC 8-03      8 R3/8”
SPC 8-04      8 R1/2″
SPC 10-01      10 R1/8”
SPC 10-02      10 R1/4”
SPC 10-03      10 R3/8”
SPC 10-04      10 R1/2″
SPC 12-01      12 R1/8”
SPC 12-02      12 R1/4”
SPC 12-03      12 R3/8”
SPC 12-04      12 R1/2″
SPC 14-02      14 R1/4”
SPC 14-03      14 R3/8”
SPC 14-04      14 R1/2″
SPC 14-06      14 R3/4”
SPC 16-02      16 R1/4”
SPC 16-03      16 R3/8”
SPC 16-04      16 R1/2″
SPC 16-06      16 R3/4”



Additional information
Size

(Part .no-SPC 8-02), (mm-8), (inch-R1/4), (Part no- SPC 4-01), (mm-4) ,(inch-R1/8), (Part no- SPC 4-M5), (MM-4), (inch-M5), (Part no- SPC 8-04), (mm-8) (inch-R1/2), (Part no-SPC 10-01), (mm-10), (inch-R1/8), (Part no-SPC 10-030, (mm-10), (inch-R3/8), (Part no-SPC 10-04), (mm-10), (inch-R1/2), (Part no-SPC 12-02), (mm-12), (inch-R1/4), (part no-SPC 12-03), (mm-12), (inch-R3/8), (Part no-SPC 12-04), (mm-12), (inch-R1/2), (Part no-SPC 14-03), (mm-14), (inch-R3/8), (Part no-SPC 16-02), (mm-16), (inch-R1/4), (Part no-SPC 16-03), (mm-16) (inch-R3/8), (Part no-SPC 16-06), (mm-16), (inch-R3/4), (Part no-SPC 6-01), (mm-6), (inch-R1/8), (Part no-SPC 6-02), (mm-6), (inch-R1/4), (Part no-SPC 6-03), (mm-6), (inch-R3/8), (Part no-SPC 6-04), (mm-6) (inch-R1/2), (Part no-SPC 8-01), (mm-8), (inch-R1/8), (Part no-SPC 8-03), (mm-8), (inch-R3/8), (Part no.-SPC 12-01), (mm-12), (inch-R1/8), (Part no.-SPC 14-02), (mm-14), (inch-R1/4), (Part no.-SPC 14-04), (mm-14), (inch-R1/2), (Part no.-SPC 14-06), (mm-14), (inch-R3/4), (Part no.-SPC 16-04), (mm-16), (inch-R1/2), (Part no.SPC 10-02), (mm-10), (inch-R1/4), (Part-SPC 4-02), (mm-4), (inch-R1/4), (Part-SPC 4-03), (mm-4), (inch-R3/8), (Part-SPC 6-M5), (mm-6), (inch- M5)
