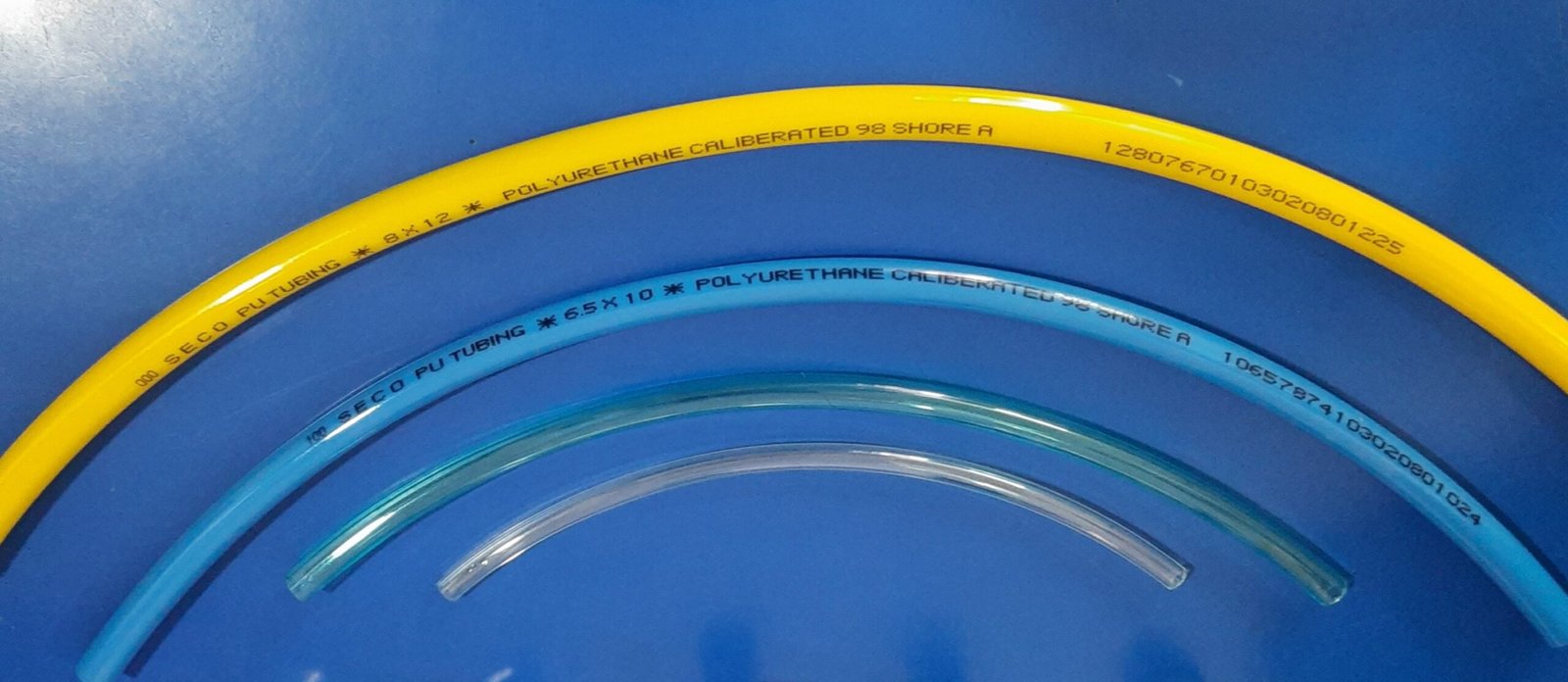

SECO PU Tubes ( Straight )

SKU: SPU Categories: ,
Description



FEATURES & BENEFITS :

Highly flexible & light weight. Corrosion, chemical & kink resistant.
Excellent tensile strength for enhanced performance & durability.
Small bend radius for ease of use at reduced spaces.
Good vibration, impact, radiation & abrasion resistant.
Good resistance to oils, greases & other tough liquids.

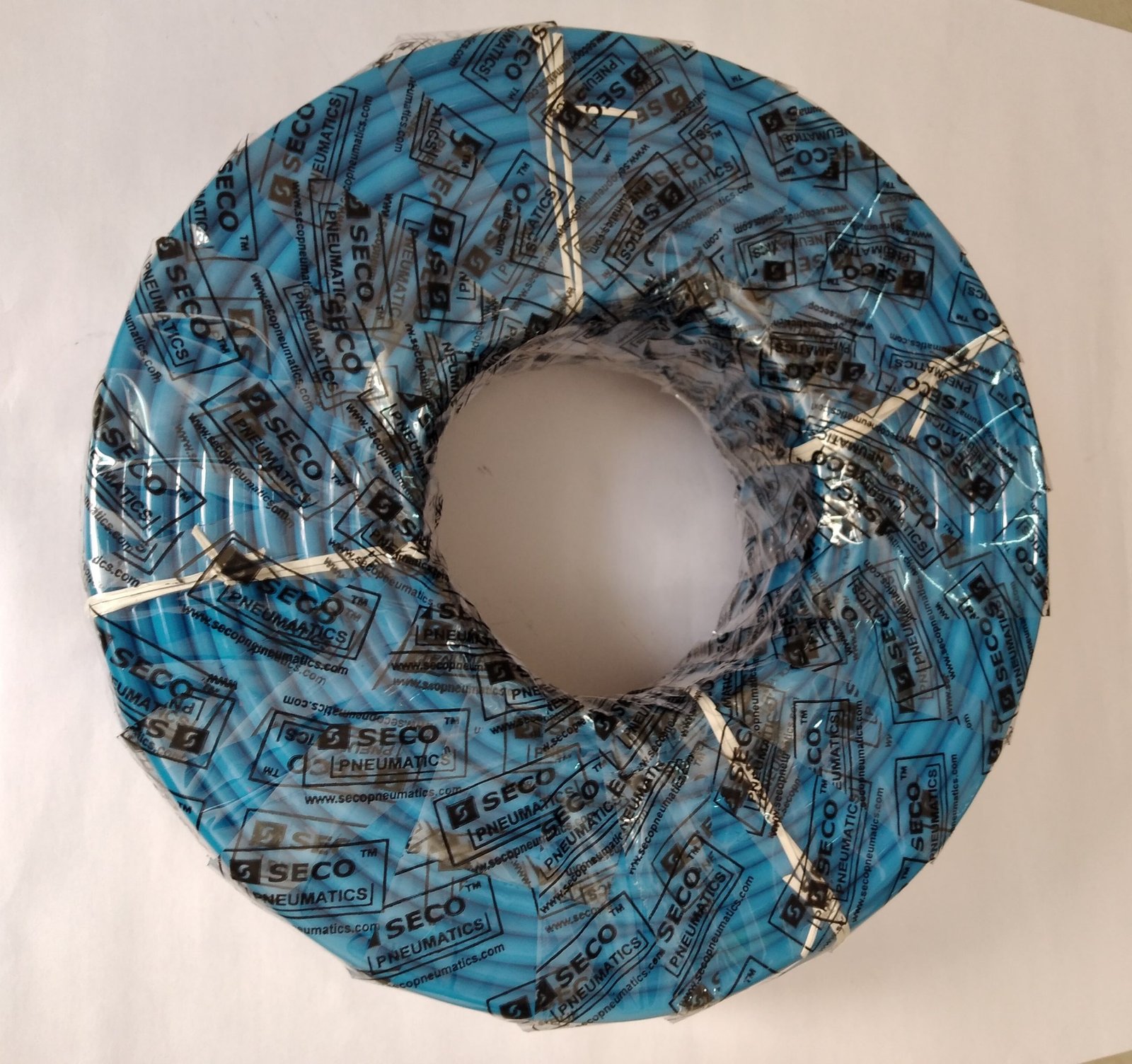

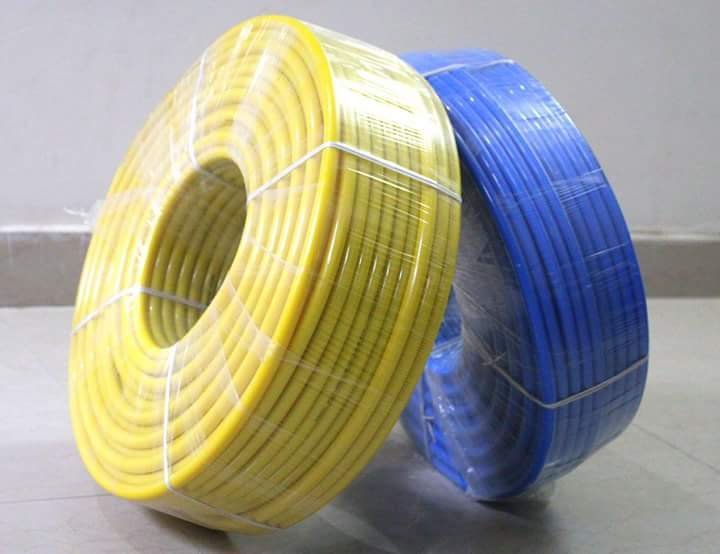

Full 100 mtr. roll supplied with meter marking.
UV-resistant.  Silicon-free.
Made from highest quality 100% virgin PU material.
Available in various colors for coding of circuits & different color needs.



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air,  Industrial fluids.

Pressure Range  :-  Vacuum to 12 bar   ( upto  175 PSI )

Temperature Range  :   -20 to +80° C  ( -4  to  +176° F )

Materials   :-  100% Virgin PU Material.

Hardness   :-  98 shore A

Available Tube OD Sizes  :-   4mm, 6mm, 8mm, 10mm, 14mm & 16mm
Available Colors   :-  Blue, Yellow, Black, Transparent ( Clear ), Orange, Red, White, Grey, Green & Transparent Blue.



MODELS & SIZES AVAILABLE  :

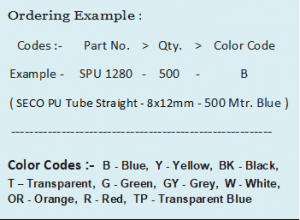

 Part No. I.D. x O.D. ( mm ) Each Roll ( Mtr. )
SPU 0425 2.5 x 4 100 M
SPU 0640  4 x 6 100 M
SPU 0850  5 x 8 100 M
SPU 0855# 5.5 x 8 100 M
SPU 1065 6.5 x 10 100 M
SPU 1070#    7 x 10 100 M
SPU 1280    8 x 12 100 M
SPU 1410  10 x 14 100 M
SPU 1612#  12 x 16 100 M
SPU 1611  11 x 16 100 M

#  Non-standard sizes. Please check for availability while ordering.





APPLICATIONS  :

Automobiles, Pneumatic tools, Robotics, Motion control, Pneumatic piping, Shipping, Printing & Packaging, Agriculture, Cement & Chemical plants, Laboratories, Instrumentation, Lubrication systems, Painting systems, Vacuum etc.
