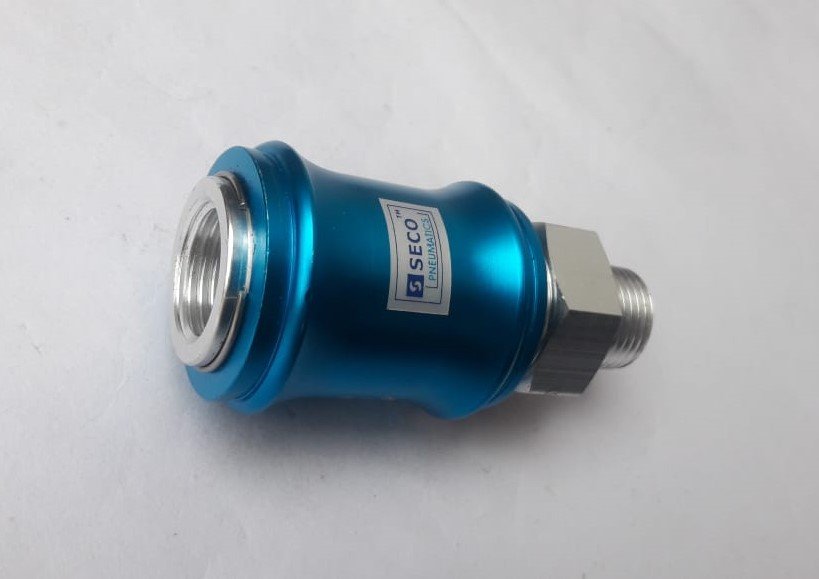

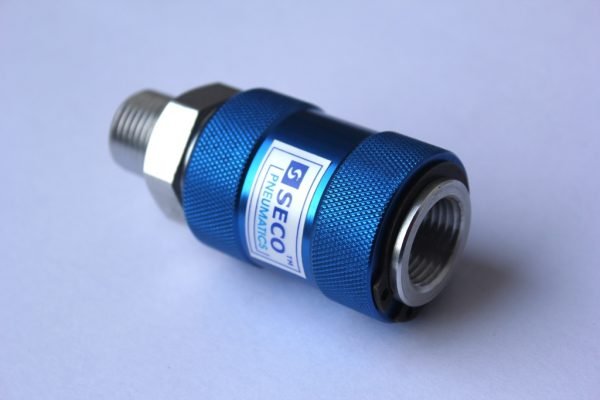

SECO Hand Slide Valves

DESCRIPTION :

SECO  Hand slide valves are specially designed to allow air flow to be put into or exhausted from a line by sliding the sleeve forward or backward. They are suitable for using as an isolation valve where the downstream needs to be vented. they are primarily installed before air service equipments/control valves etc.
Description



FEATURES & BENEFITS :

Used in pneumatic lines to ON/OFF air flow and venting off air from pneumatic systems.
Sturdy inline type compact design for enhanced performance & durability.
Aluminum body with anodization for corrosion resistance & smooth finish.
Available in various sizes for different pipe size/lines requirements.
Available sizes – 1/8″, 1/4″, 3/8″ & 1/2″.



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air

Pressure Range  :-  Vacuum to 10 bar   ( upto  145 PSI )

Ambient Temperature Range  :   0 to +60° C  ( 0  to  +140° F )

Body Material   :-  Aluminum

Plating               :-   Anodized for corrosion resistance & smooth finish

Available Sizes  :  1/8″,  1/4″,  3/8″  &  1/2″
Thread Type     :-  Male BSPT  x Female BSPP thread.  ( NPT & other threads on request )



MODELS & SIZES AVAILABLE  :

 Part No. Conn. Size ( inch ) Thread type
SHSV – 01 1/8″ Male x Female
SHSV – 02 1/4″ Male x Female
SHSV – 03 3/8″ Male x Female
SHSV – 04 1/2″ Male x Female



APPLICATIONS  :

SECO  Hand slide valves are commonly used in pneumatic lines to ON/OFF air flow as well as venting off extra air from pneumatic systems/circuits manually. They are used in pneumatic machines/circuits/lines before FRL’s, air inlets & control valves.
