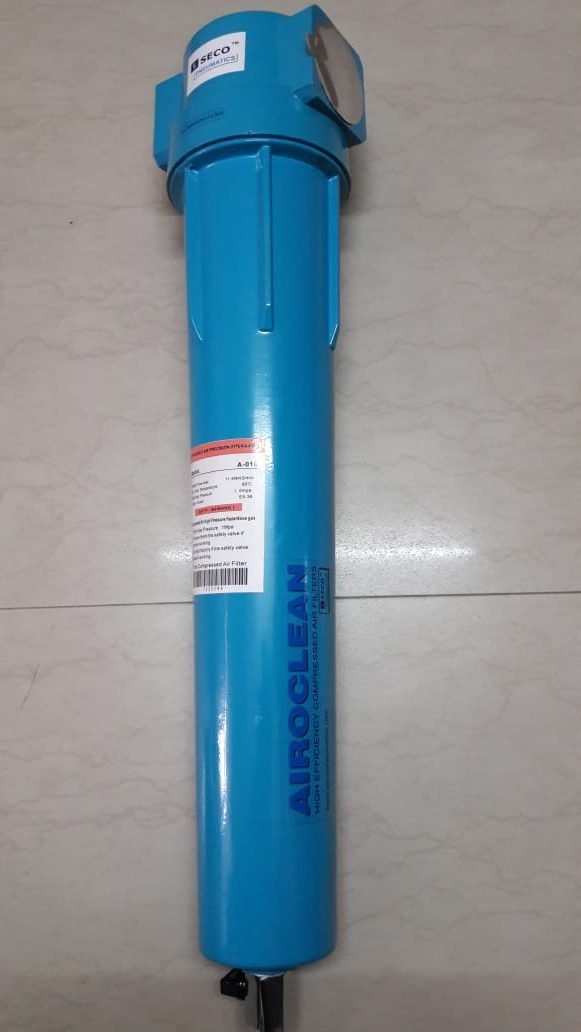

SECO Compressed Air Filters, “AIROCLEAN” Series

2,356.00 2,000.00

Description :

Moisture present in compressed air can damage various moving parts & components in a pneumatic system resulting in machine breakdown or production stoppage. SECO “AIROCLEAN” series Compressed Air Filters ensure consistent & outstanding air quality for enhanced performance & increased efficiency of pneumatic systems. These filters are ideally suited for main line installations & available in big sizes ranging from 1/2″ ~ 2-1/2″. They are available as PRE-FILTERS, MICRO FILTERS & OIL REMOVING FILTERS.

Description

FEATURES & BENEFITS :

  • SECO “AIROCLEAN” series Compressed Air Filters are highly suitable for main line installations.
  • Available in 3 variants – PRE-FILTERS, MICRO FILTERS & OIL REMOVING FILTERS.

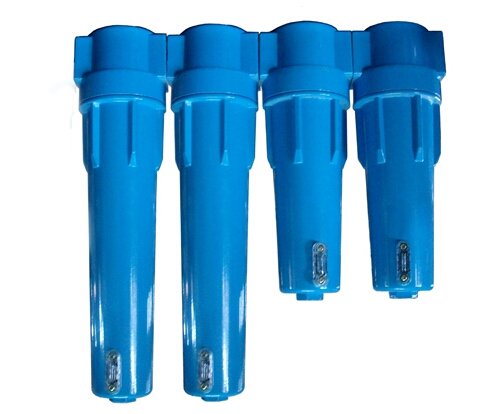

  • FILTER HOUSING BODY – Sturdy design, anti-corrosion treatment, easy maintenance & element replacement & has a guaranteed life of around 10 years.

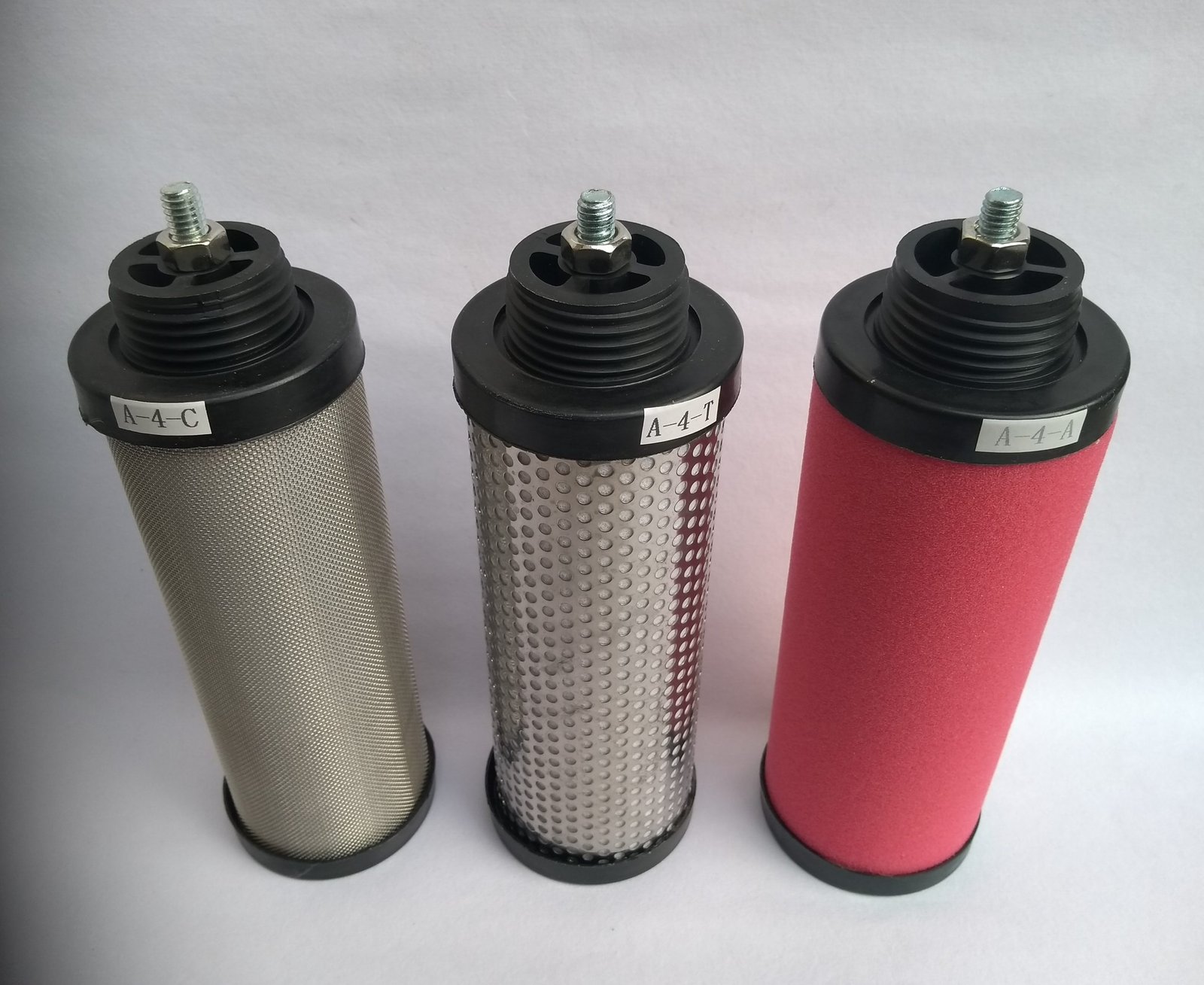

  • FILTER ELEMENT – Uniquely designed for maximum moisture & dirt removal, reduced pressure loss to ensure improved efficiency & optimum air flow.
  • CONNECTION FLEXIBILITY – Available in various port sizes & connections to suit wide range of applications.
  • Supplied with filter housing body + filter cartridge + manual drain/ball valve as complete set.
  • Filtration efficiency – Pre-filter – 3 Micron, Micro filters – 1 Micron, ORF – 0.01 Micron.
  • Separate filter cartridge elements, auto drain valves & differential gauges also available.
  • Recommended period of cartridge element change – 12 months.
  • Working temp. / Pressure range – 0 ~ 80° C / 0.5 ~ 16 bar.
  • Available sizes – 1/2”, 1”, 1.5”, 2” & 2.5”



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air

Pressure Range  :-  0.5 to 16 bar   ( upto  232 PSI )

Ambient Temperature Range  :   0 to +80° C  ( 0  to  +176° F )

Filter Housing Body Material  :- Aluminium alloy housing body with dry powder epoxy coating & anti-corrosion treatment.

Part No.              Size Code    Size     Flow Rate (Nm)   Flow Rate (Cfm)

SCF-C/T/A-001      001            1/2”         1 Nm3/min          35.31 Cfm
SCF-C/T/A-002     002             1”           2 Nm3/min          70.62 Cfm
SCF-C/T/A-004     004           1.5”          4 Nm3/min         141.25 Cfm
SCF-C/T/A-010      010            2”       11.5 Nm3/min        406.06 Cfm
SCF-C/T/A-013      013           2.5”        13 Nm3/min        459.09 Cfm

Filter Code : C = Pre-Filter, T = Micro Filter, A = Oil Removing Filter

Ordering Example :                  SCF > Filter Element Code > Size Code

Example : Micro Filter – 2”  =  SCF – T – 010

Filter Name                                                Filter Type

PRE-FILTER                                              Coalescing

MICRO-FILTER                                    Dry Particulate

OIL REMOVING FILTER               Oil Vapour Removal



APPLICATIONS  :

Pre-filter are used to remove dirt & solid particles, Micro filters are used to remove moisture & fine particles while Oil removing filters are used to remove oil from compressed air main lines to protect airlines & systems from corrosion, machine breakdown & production stoppage. These filters ensure improved life & efficiency of pneumatic systems & components. Highly suitable for installations in various plants where air compressors are used.
