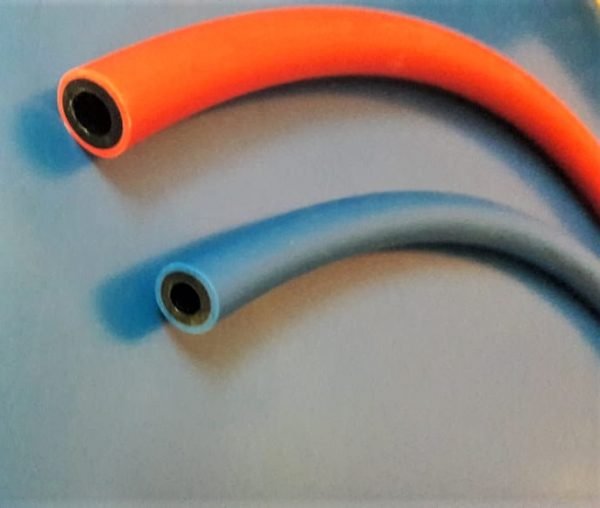

SECO Anti-Spark Tube ( Spatter Tube ) Two Layer

4,600.00

DESCRIPTION :

SECO Anti-Spark Tubes ( Spatter Tubes ) – Two layers with outer PVC sheath are ideally suited for welding applications combining outstanding spark resistance with extreme flexibility. They are also highly suitable for automotive lines, injection moulding cooling lines & for use with other aggressive industrial fluids.

Description



FEATURES & BENEFITS :

  • Suitable for welding applications & use in aggressive environments.
  • Weld spatter resistant, Excellent impact & abrasion resistant.
  • High quality PVC sheath outer layer to protect internal tube.
  • Extreme flexibility, Compact bend radius & light weight.
  • Excellent tensile strength & durability.
  • Corrosion, chemical & kink resistant.
  • Available in 5 colors for different color needs
  • Conforms to fire proof grade UL-94 ( V-0 )



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-   Industrial fluids.

Pressure Range  :-  Vacuum to 12 bar   ( upto  175 PSI )

Temperature Range  :   -20 to +80° C  ( -4  to  +176° F )

Materials   :-  High quality anti-spark tube with outer PVC sheath.

Available Tube OD Sizes  :-   4mm, 6mm, 8mm, 10mm & 12mm
Available Outer Layer Colors   :-  Blue, Black, Orange, Red, Green.



MODELS & SIZES AVAILABLE  :

 Part No. I.D. x O.D. ( mm ) Each Roll ( Mtr. )
SH 0425 2.5 x 4 100 M
SH 0640  4 x 6 100 M
SH 0850  5 x 8 100 M
SH 1065 6.5 x 10 100 M
SH 1280 8 x 12 100 M

 Outer cover layer is 2mm more than OD.





APPLICATIONS  :

SECO Anti-Spark Tubes are highly suitable for use in robotic welding applications, injecting moulding cooling lines, automotive assembly lines and transfer of deionised water etc.
