Miniature Straight Connector – Hex Body, BSPT Thread

Description

FEATURES & BENEFITS :

Miniature design for specialized applications where space is restricted.
Internal hex slots for allen key use in tight spaces.
Compact & attractive design for space saving & better aesthetics.
S.S. Gripping ring holds the tube perfectly without deformation.
100% leak tested during manufacturing.
Corrosion & chemical resistance. Silicon-free.
Available in BSPT threads ( BSPP & NPT Threads on request )
Recommended to be used with SECO PU & other tubes for enhanced performance.
Long service life & maintenance free.
Ideal for vacuum or pressure applications.



TECHNICAL SPECIFICATIONS :

Compatible Fluids  :-  Compressed Air.

( SECO Push-in fittings can also be used with various fluids, cutting oil, water etc. for various industrial applications. Pl. consult us for different fluid applications.)

Pressure Range :-  Upto 20 bar Max ( 290 PSI )

( Maximum working pressure & temperature range are equally dependent on type & diameter of tubing used.)

Temperature Range  :   -20 to +80° C ( -4 to +175° F )

Materials of Construction :

Threaded parts :-  Nickle-plated brass.

Polymer body :-  High quality polyamide material.

Gripping ring :-  Stainless steel

“O” rings :-  Nitrile ( FPM, EPDM “O”-rings upon request )

Pre-Coating  :-  Imported PTFE Coating.Thread

Size Codes :-  M5,  &  01 (1/8”)
Tube OD Sizes :-  4mm & 6mm

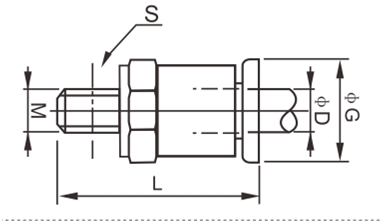

MODELS & SIZES AVAILABLE  :

           PART NO.     Tube OD

     ( mm )

      Conn. Size

         ( inch )

         SPC-M-4-M5      4        M5
         SPC-M-4-01      4       R1/8
         SPC-M-6-M5      6        M5
         SPC-M-6-01      6       R1/8
